HiTEC Digital & Analog Servos

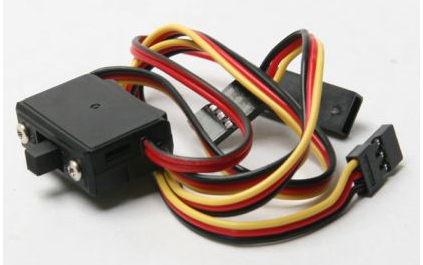

HiTEC Switch Harness with Charge Jack

Price: $14.85 (inc. GST) Export price AUD 13.50

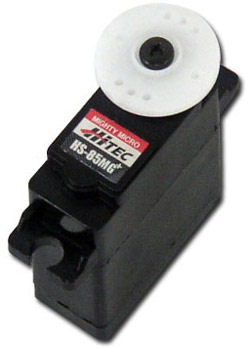

HiTEC HS-85MG Analog Micro Metal Gear Servo

(Micro Size)

Dimensions (LxWxH)	1.14" x 0.51" x 1.16" (29.0 mm X 13.0 mm X 30.0 mm)
Weight	0.77 oz (21.9 g)
Voltage Range	4.8 V - 6.0 V
No-Load Speed (4.8V)	0.16 sec/60�
No-Load Speed (7.4V)	0.14 sec/60�
Stall Torque (4.8V)	41.7 oz-in. (3.0 kg.cm)
Stall Torque (6.0V)	48.6 oz-in (3.5 kg.cm)

Price: $61.70 (inc. GST) Export price AUD 56.10

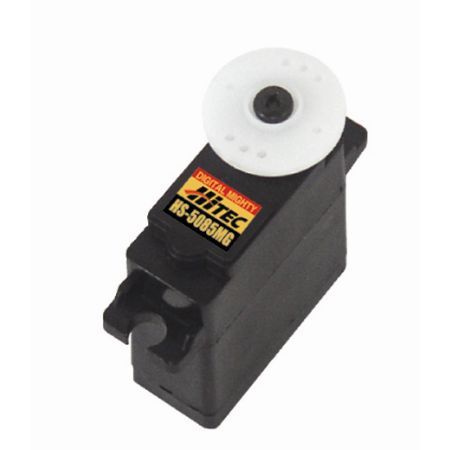

HiTEC HS-5085MG Digital Micro Metal Gear Servo

(Micro Size)

Dimensions (LxWxH)	1.14" x 0.51" x 1.18" (29.0 mm X 13.0 mm X 30.0 mm)
Weight	0.77 oz (21.9 g)
Voltage Range	4.8 V - 6.0 V
No-Load Speed (4.8V)	0.17 sec/60�
No-Load Speed (7.4V)	0.13 sec/60�
Stall Torque (4.8V)	50 oz-in. (3.6 kg.cm)
Stall Torque (7.4V)	60 oz-in (4.3 kg.cm)

Price: $69.95 (inc. GST) Export price AUD 63.60

HiTEC HS-225BB Analog Mini Servo

(Mini Size)

Dimensions (LxWxH)	1.27" x 0.66"x 1.22" (32.4 x 16.8 x 31mm)
Product Weight	0.95oz (27g)
Voltage Range	4.8V - 6.0V
No-Load Speed (4.8V)	0.14sec/60�
No-Load Speed (6.0V)	0.11sec/60�
Stall Torque (4.8V)	54.15 oz/in. (3.9 kg.cm)
Stall Torque (6.0V)	66.65 oz/in. (4.8 kg.cm)

Price: $34.95 (inc. GST) Export price AUD 31.80

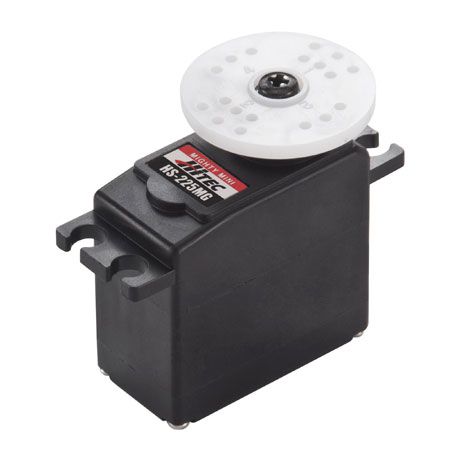

HiTEC HS-225MG Analog Mini Metal Gear Servo

(Mini Size)

Dimensions (LxWxH)	1.27" x 0.66" x 1.22" (32.26 x 16.76 x 31.00mm)
Product Weight	1.10oz (31g)
Voltage Range	4.8V - 6.0V
No-Load Speed (4.8V)	0.14sec/60�
No-Load Speed (6.0V)	0.11sec/60�
Stall Torque (4.8V)	54.15 oz/in. (3.9 kg.cm)
Stall Torque (6.0V)	66.65 oz/in. (4.8 kg.cm)

Price: $58.60 (inc. GST) Export price AUD 53.30

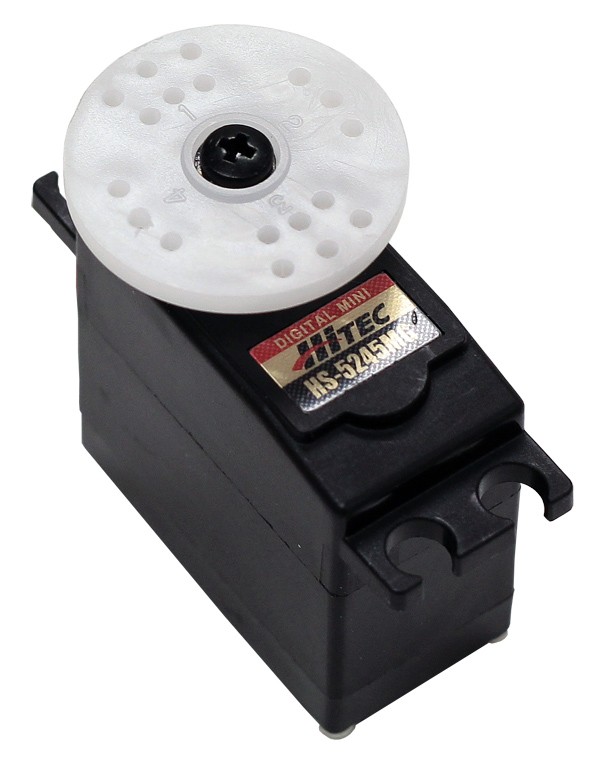

HiTEC HS-5245MG Digital Mini Metal Gear Servo

(Mini Size)

Dimensions (LxWxH)	1.3" x 0.7"x 1.2" (32 x 17 x 31mm)
Product Weight	1.12oz (32g)
Voltage Range	4.8V - 6.0V
No-Load Speed (4.8V)	0.15sec/60�
No-Load Speed (6.0V)	0.12sec/60�
Stall Torque (4.8V)	61 oz/in. (4.4 kg.cm)
Stall Torque (6.0V)	76 oz/in. (5.5 kg.cm)

Price: $81.70 (inc. GST) Export price AUD 74.30

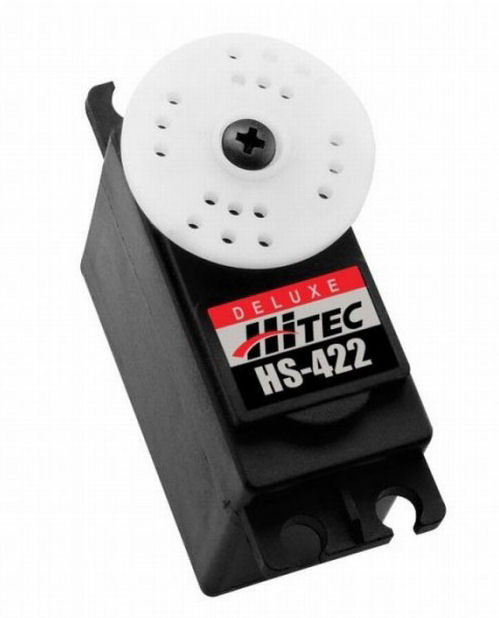

HiTEC HS-422 Analog Nylon Gear Standard Servo

(Standard Size)

Dimensions (LxWxH)	1.59" x 0.77" x 1.44" (40.39 x 19.56 x 36.58mm)
Weight	1.6oz (45.5g)
Voltage Range	4.8V - 6.0V
No-Load Speed (4.8V)	0.21 sec/60�
No-Load Speed (6.0V)	0.16 sec/60�
Stall Torque (4.8V)	45.82 oz/in. (3.3 kg.cm)
Stall Torque (6.0V)	56.93 oz/in. (4.1 g.cm)

Price: $33.95 (inc. GST) Export price AUD 30.90

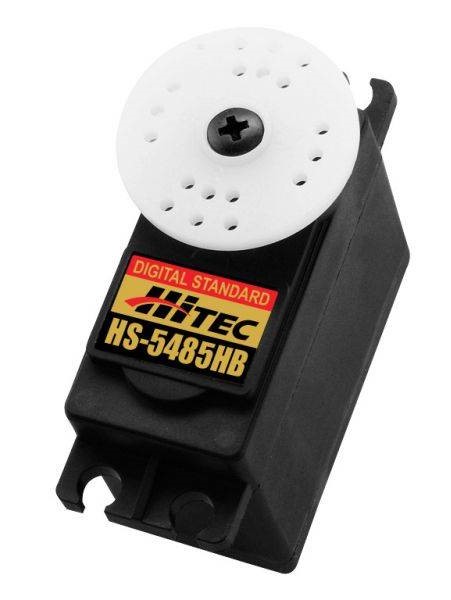

HiTEC HS-5485HB Digital Servo

(Standard Size)

Dimensions (LxWxH)	1.57" x 0.78" x 1.49" (39.8 mm X 19.8 mm X 38.0 mm)
Weight	1.59 oz (45.0 g)
Voltage Range	4.8 V - 6.0 V
No-Load Speed (4.8V)	0.20 sec/60�
No-Load Speed (6.0V)	0.17 sec/60�
Stall Torque (4.8V)	72 oz-in. (5.2 kg.cm)
Stall Torque (6.0V)	89 oz-in (6.4 kg.cm)

Price: $50.95 (inc. GST) Export price AUD 46.35

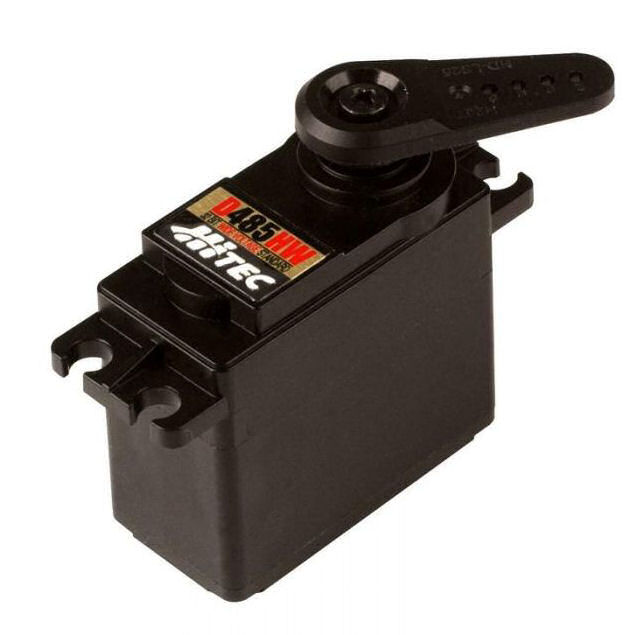

HiTEC HS-D485HW Digital HV High Torque Servo

(Standard Size)

Dimensions (LxWxH)	1.57" x 0.78" x 1.49" (39.8 mm X 19.8 mm X 38.0 mm)
Weight	1.59 oz (45.0 g)
Voltage Range	4.8 V - 7.4 V
No-Load Speed (4.8V)	0.20 sec/60�
No-Load Speed (7.4V)	0.15 sec/60�
Stall Torque (4.8V)	67 oz-in. (5.2 kg.cm)
Stall Torque (7.4V)	103 oz-in (7.5 kg.cm)

Price: $51.50 (inc. GST) Export price AUD 46.85

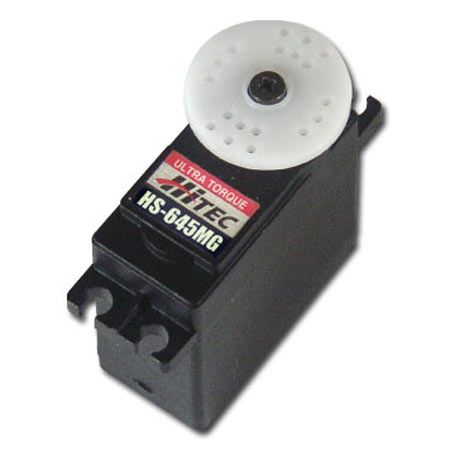

HiTEC HS-645MG Analog Metal Gear Servo

(Standard Size)

Dimensions (LxWxH)

1.59" x 0.77"x 1.48" (40.6 x 19.8 x 37.8mm)

Weight

1.94oz. (55.2g)

Voltage Range

4.8V - 6.0V

No-Load Speed (4.8V)

0.24 sec/60�

No-Load Speed (6.0V)

0.20 sec/60�

Stall Torque (4.8V)

106.93 oz/in. (7.7 kg.cm)

Stall Torque (6.0V)

133.31 oz/in. (9.6 kg.cm)

Price: $67.90 (inc. GST) Export price AUD 61.75

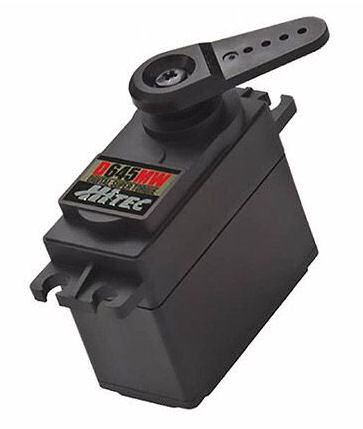

HiTEC HS-D645MW Digital HV Super Torque Metal Gear Servo

(Standard Size)

Dimensions (LxWxH)	1.59� x 0.77� x 1.48� (40.6 x 19.8 x 37.8mm)
Weight	2.11oz (60g)
Voltage Range	4.8V - 8.4V
No-Load Speed (4.8V)	0.28 sec/60�
No-Load Speed (6.0V)	0.20 sec/60�
No-Load Speed (7.4V)	0.17 sec/60�
Stall Torque (4.8V)	115.3 oz/in. (8.3 kg.cm)
Stall Torque (6.0V)	157.8 oz/in. (11.3 kg.cm)
Stall Torque (7.4V)	180.1 oz/in. (12.9 kg.cm)

Price: $73.95 (inc. GST) Export price AUD 67.25

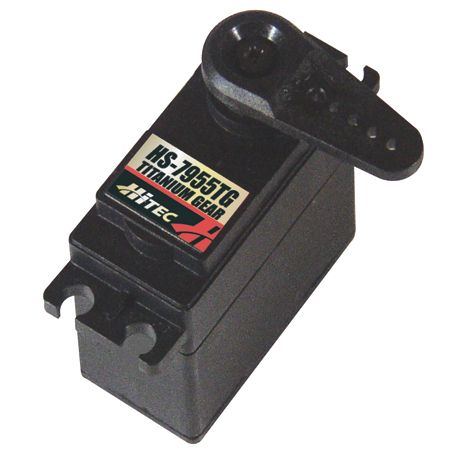

HiTEC HS-7955TG-2 Digital Ultra Torque Titanium Gear Standard Servo

(Standard Size)

Dimensions (LxWxH)	1.57" x 0.78"x 1.45" (40 x 20 x 37mm)
Weight	2.29oz (65g)
Voltage Range	4.8V - 6.0V
No-Load Speed (4.8V)	0.19 sec/60�
No-Load Speed (6.0V)	0.15 sec/60�
Stall Torque (4.8V)	249 oz/in. (18 kg.cm)
Stall Torque (6.0V)	333 oz/in. (24 kg.cm)

Price: $192.50 (inc. GST) Export price AUD 175.00

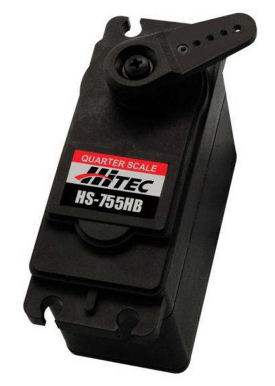

HiTEC HS-755HB Analog 1/4 Scale Karbonite Gear Servo

(Quarter Scale Size)

Dimensions (LxWxH)	2.3" x 1.1"x 2.0" (59 x 29 x 50mm)
Product Weight	3.88 oz.. (110g)
Voltage Range	4.8V - 6.0V
No-Load Speed (4.8V)	0.28sec/60�
No-Load Speed (6.0V)	0.23sec/60�
Stall Torque (4.8V)	152 oz/in. (11 kg.cm)
Stall Torque (6.0V)	183 oz/in. (13.2 kg.cm)

Price: $69.00 (inc. GST) Export price AUD 62.75

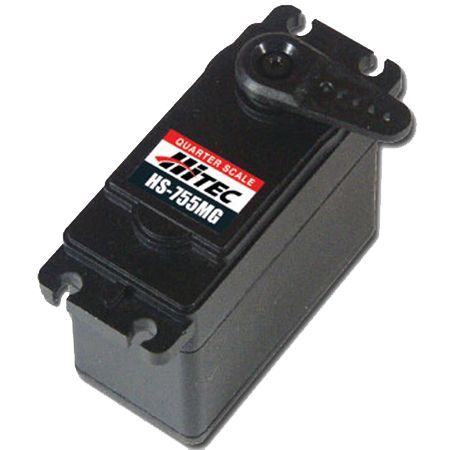

HiTEC HS-755MG Analog 1/4 Scale Metal Gear Servo

(Quarter Scale Size)

Dimensions (LxWxH)	2.3" x 1.1"x 2.0" (59 x 29 x 50mm)
Product Weight	4.12 oz.. (117g)
Voltage Range	4.8V - 6.0V
No-Load Speed (4.8V)	0.28sec/60�
No-Load Speed (6.0V)	0.23sec/60�
Stall Torque (4.8V)	167 oz/in. (12 kg.cm)
Stall Torque (6.0V)	200 oz/in. (14 kg.cm)

Price: $109.95 (inc. GST) Export price AUD 99.95

HiTEC HS-5765MH Digital HV 1/4 Scale Metal Gear Scale Servo

(Quarter Scale Size)

Dimensions (LxWxH)	2.32� x 1.14� x 2.04� (59 x 29 x 52mm)
Product Weight	6.07 oz (172g)
Voltage Range	6.0V - 7.4V
No-Load Speed (6.0V)	0.16sec/60�
No-Load Speed (7.4V)	0.13sec/60�
Stall Torque (6.0V)	277.74 oz/in. (20 kg.cm)
Stall Torque (7.4V)	347.17 oz/in. (25 kg.cm)

Price: $157.00 (inc. GST) Export price AUD 136.40
